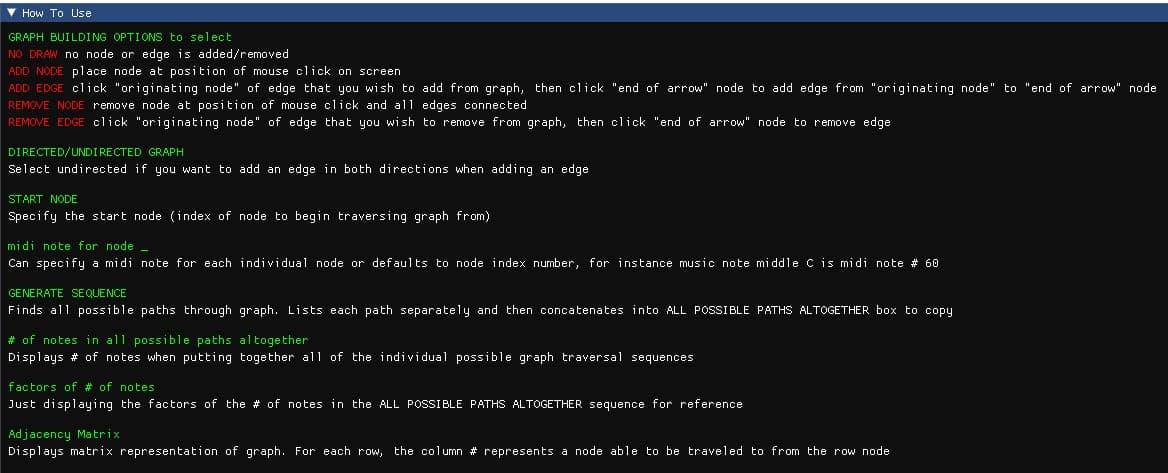

How To Use:

• GRAPH BUILDING OPTIONS to select
• NO DRAW: no node or edge is added/removed
• ADD NODE: place node at position of mouse click on screen
• ADD EDGE: click "originating node" of edge that you wish to add from graph, then click "end of arrow" node to add edge from "originating node" to "end of arrow" node
• REMOVE NODE: remove node at position of mouse click and all edges connected
• REMOVE EDGE: click "originating node" of edge that you wish to remove from graph, then click "end of arrow" node to remove edge
• DIRECTED/UNDIRECTED GRAPH: select undirected if you want to add an edge in both directions when adding an edge
• START NODE: specify the start node (index of node to begin traversing graph from)
• Can specify a midi note for each individual node or defaults to node index number For instance music note middle C is midi note # 60

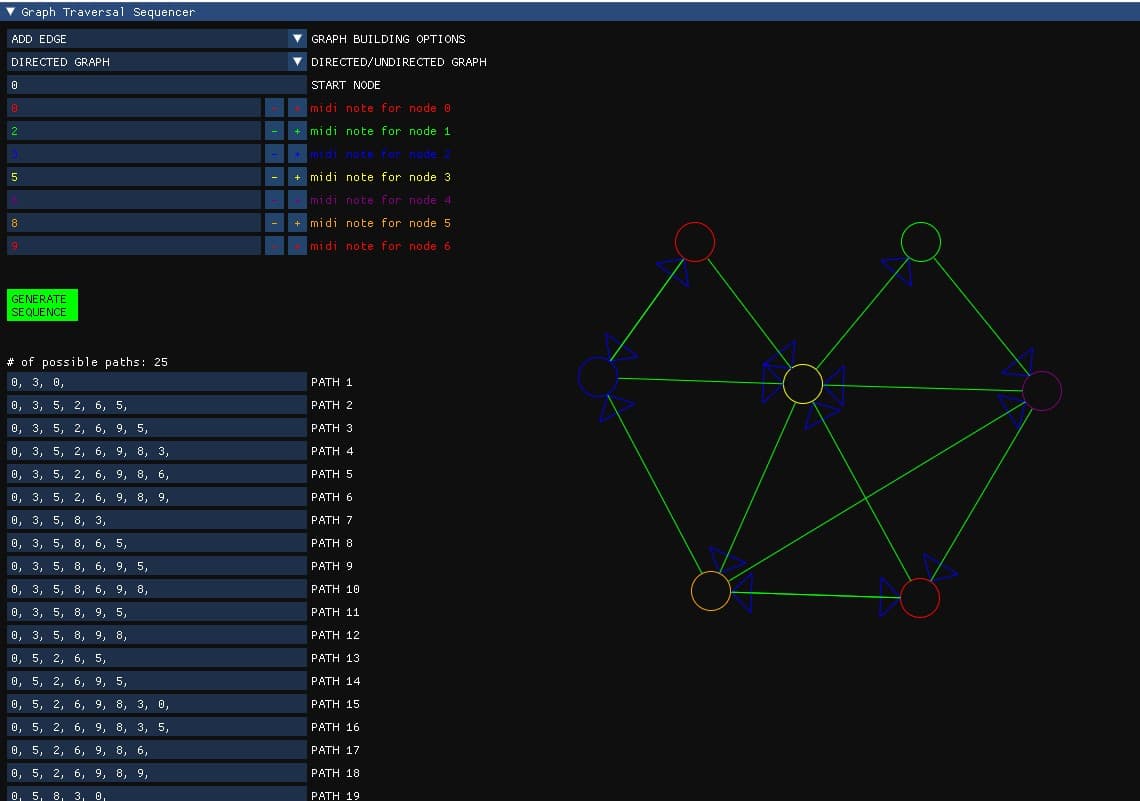

• GENERATE SEQUENCE: Finds all possible paths through graph. Lists each path separately and then concatenates into ALL POSSIBLE PATHS ALTOGETHER box to copy
• # of notes in all possible paths altogether: Displays # of notes when putting together all of the individual possible graph traversal sequences
• factors of # of notes: Just displaying the factors of the # of notes in the ALL POSSIBLE PATHS ALTOGETHER sequence for reference
• Adjacency Matrix: Display matrix representation of graph. For each row, the column # represents a node able to be traveled to from the row node
