Midi Montage Image Sequencer

Created with Next.js and Tailwind CSS using Web MIDI API to receive MIDI messages

runs in web browser, requires no setup if user already has midi ports configured on device

Instantly sync midi notes with mapped images in real time

for live performance or visual montage composition

Please use with your midi device at:

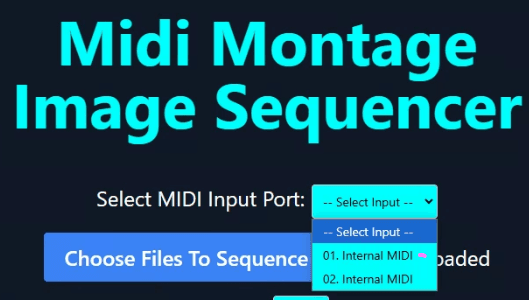

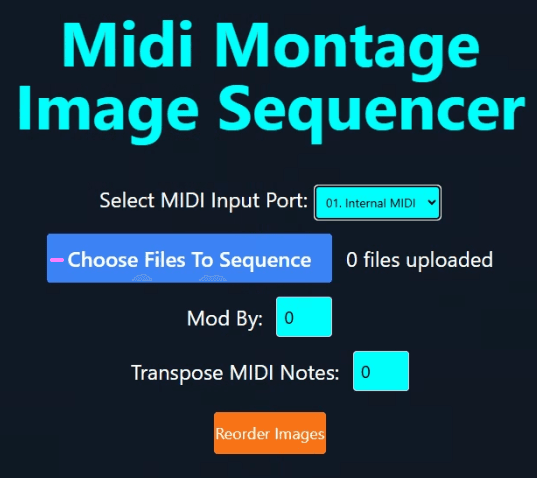

select midi input port from drop down menu

(need ports set up on computer, I use LoopBe30 for windows os)

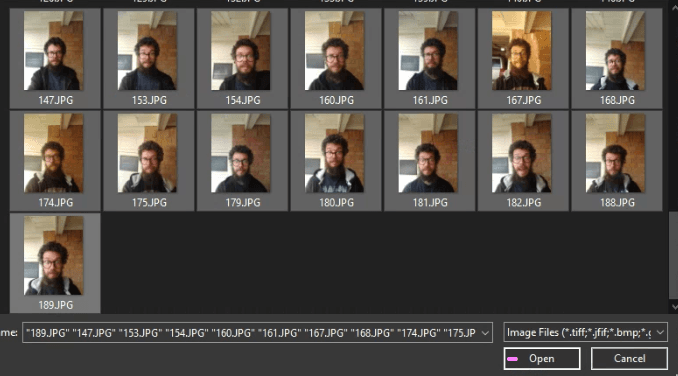

select image files to sequence from your device

set up midi send from daw or through internal routing in computer
send midi to midi input port selected from drop down
can use prewritten midi notes or played real time with whatever midi controller device that you have configured

example sending midi from Ableton Live

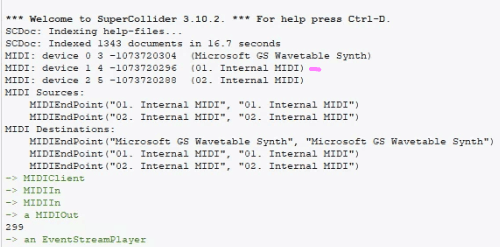

example sending midi from Supercollider

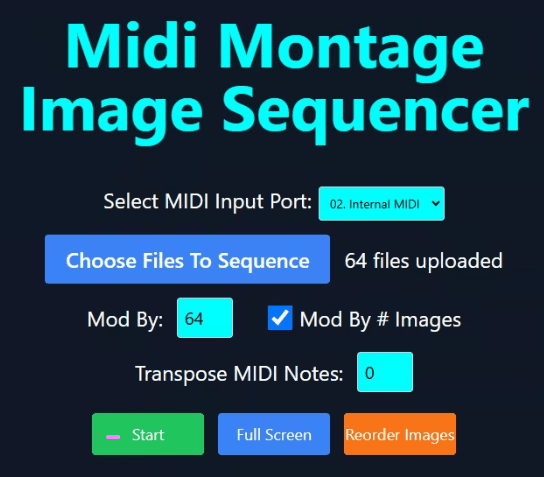

click Start button to display images triggered by incoming midi notes

images will display in real time with midi notes received by app
click on Full Screen to have image player fill screen to display in sync with music during live performance

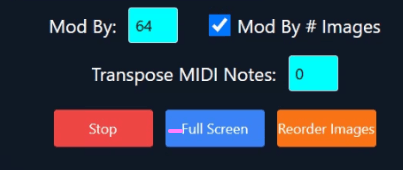

"Mod By" specifies what the incoming midi note will be modded by (remainder after division)
for example incoming midi note of 67 with "Mod By" set at 64 will trigger image 3 in images array 67 % 64 = 3
"Mod By" is by default set to the # of images that the user uploaded

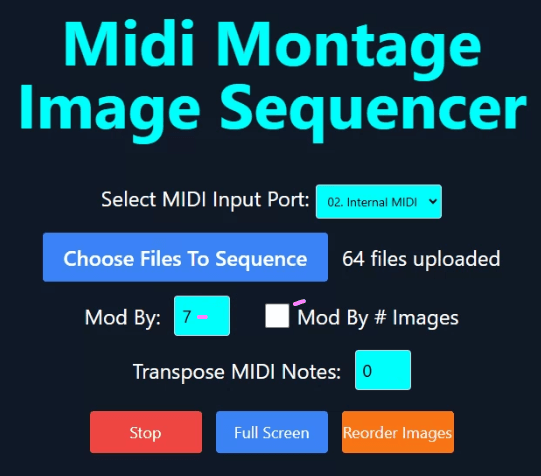

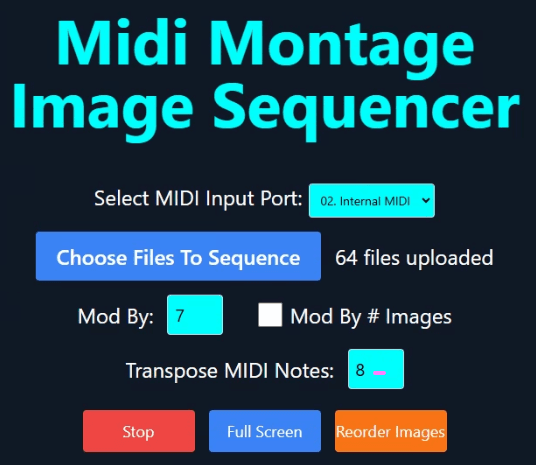

to specify custom "Mod By" value, uncheck "Mod By # Images" checkbox
and input new value for "Mod By"
this value can be used to experiment with to produce patterns with varying range constrained by the "Mod By" value

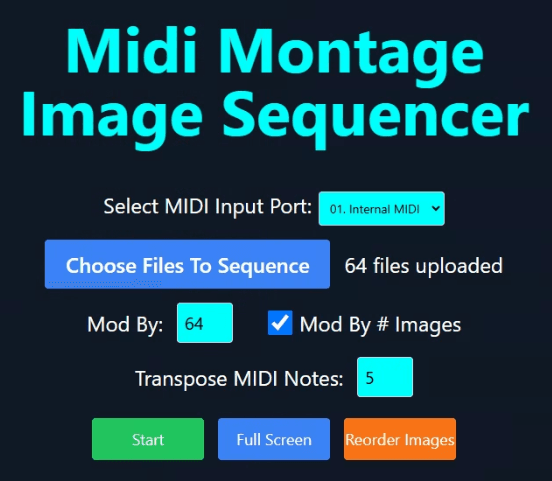

parameter for user to specify the # of midi notes that each incoming midi note will be transposed up or down by
"Transpose MIDI Notes" is by default 0 (midi notes received will be unchanged)
can be used to move an incoming midi note pattern to cover different areas of the uploaded images
can be used in conjunction with "Mod By". "Mod By" to narrow the window of images being triggered, "Transpose MIDI Notes" to move the window through the image array

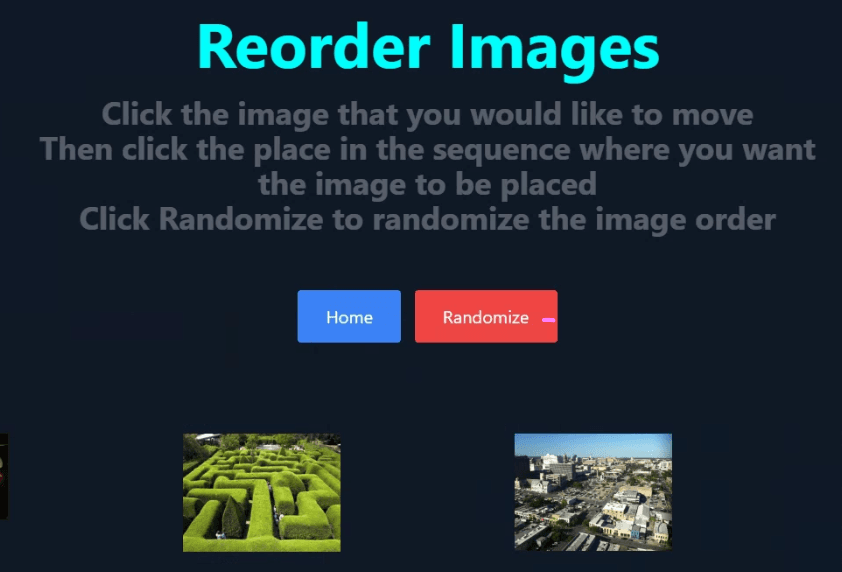

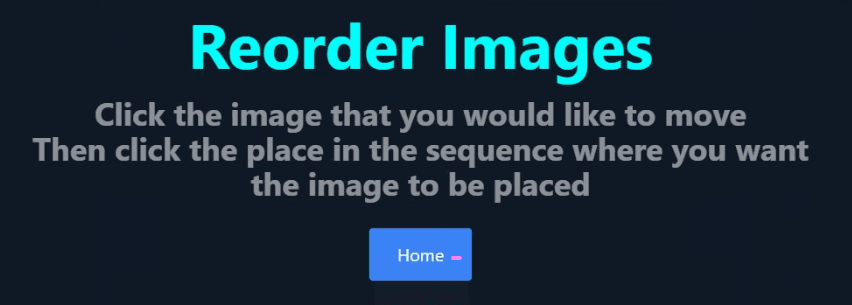

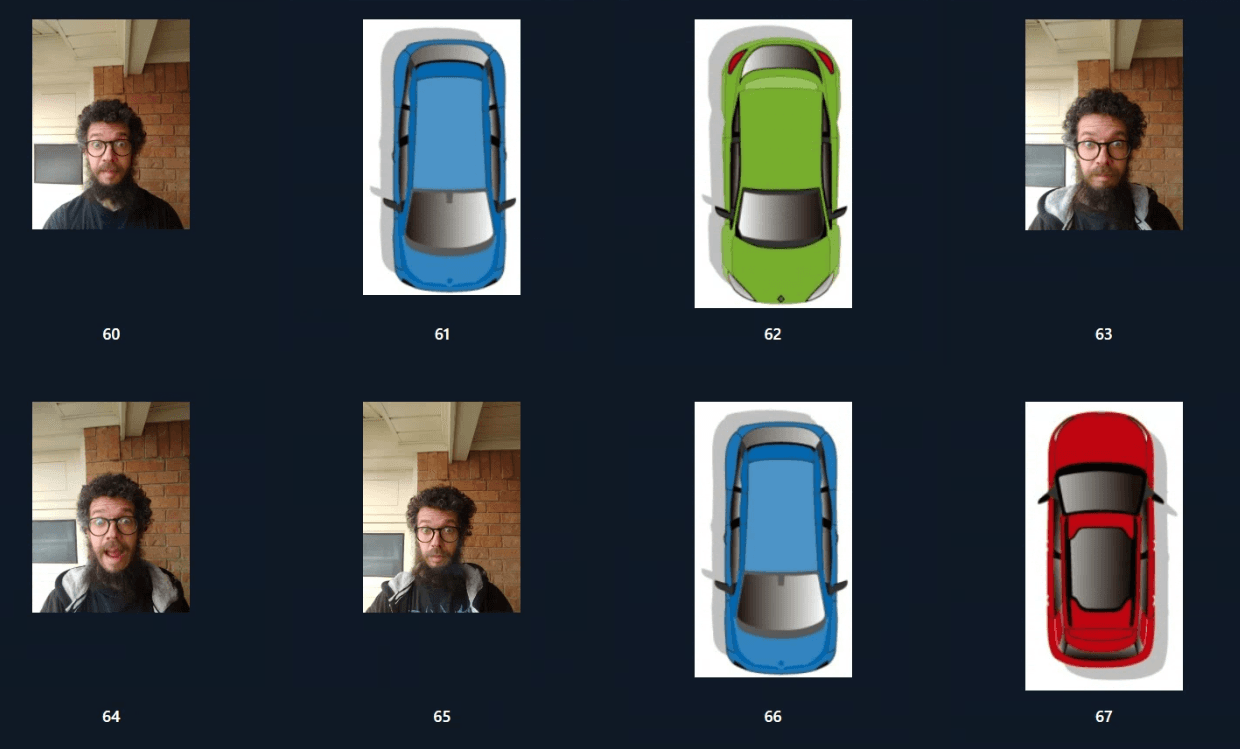

"Reorder Images" provides the ability to rearrange the uploaded images' positions' in the images array

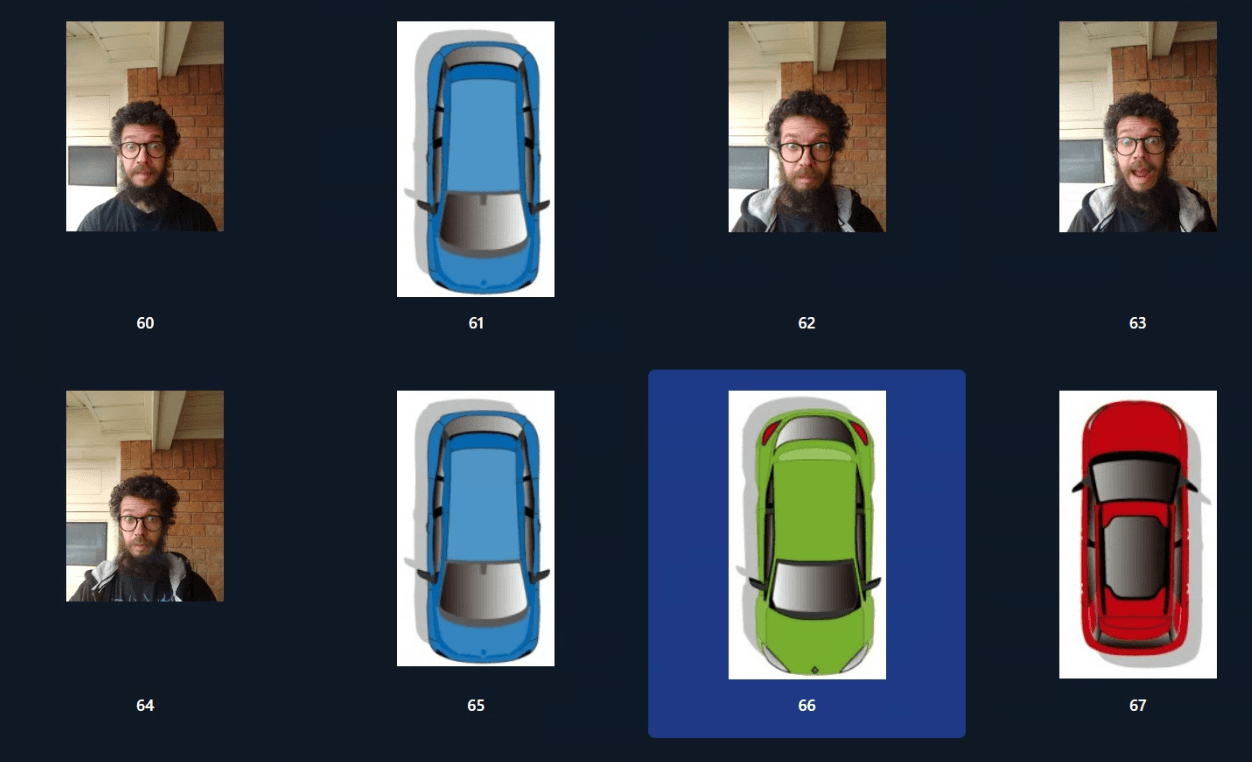

for instance if you are sending midi note 48 to trigger image 48 but want a different image at index 48 to trigger, can rearrange the array on this page
